Irin idadoro Bridge

Awọn Afara Idaduro Irin ti a ṣe nipasẹ EIHE Steel Structure (EHSS) jẹ awọn ile irin ti o ni ipilẹ ti o gba irin-giga bi awọn ohun elo atilẹyin akọkọ. Awọn ọja wa ni a lo ni akọkọ fun okun-okun ati awọn afara-odò ni awọn ohun elo gbangba, awọn afara ala-ilẹ ni awọn ile iṣowo, ati awọn afara idadoro ita laarin awọn ile-iṣẹ ile-iṣẹ. Gẹgẹbi olupese ti o ni iriri, a ti pese awọn ọja wa si awọn alabara lọpọlọpọ.

Fi ibeere ranṣẹ

ọja Apejuwe

Ifihan agbara iyasọtọ, ipalọlọ ọjo ati ṣiṣe iṣelọpọ giga, Afara Idaduro Irin ti a ṣe nipasẹ ile-iṣẹ wa ni akọkọ pẹlu awọn paati Core

Awọn ẹya	Awọn eroja
Superstructure	Awọn girders akọkọ / trusses, deki afara, àmúró transverse
Substructure	Afara piers, abutments, bearings
Ipilẹṣẹ	Pile ipile, ipilẹ itankale
Awọn ohun elo Iranlọwọ	Railings, ina, idominugere, imugboroosi isẹpo

Awọn oju iṣẹlẹ elo

Afara Idaduro Irin Irin wa nṣogo lọpọlọpọ ti awọn oju iṣẹlẹ ohun elo ti o wulo, pẹlu ibeere to lagbara ni eka gbangba. Nitorinaa, awọn ọja wa ni akọkọ ti pese fun awọn ohun elo idalẹnu ilu, lakoko ti o tun nṣe iranṣẹ awọn iṣẹ iṣelọpọ ati iṣowo.

Oju iṣẹlẹ	Iru
River-Líla Bridge fun Expressway	Irin Box Girder Bridge, Irin Truss Bridge
River-Líla Bridge fun Reluwe	Irin Truss Girder Bridge, Irin Arch Bridge
Ilu Interchange / Ramp	Irin Awo Girder Bridge, Irin Box Girder Bridge
Wiwọle Igbala Pajawiri	321 Prefabricated Irin idadoro Afara
ikole Trestle Bridge	Afara Bailey (Ti a ti ṣe tẹlẹ)
Iwoye Area ẹlẹsẹ Afara	PB100 Lightweight apọjuwọn Bridge
Rural Highway Atunṣe	Kekere ati Alabọde-won Irin Awo Girder Bridge

Awọn ọja wa ni awọn anfani lọpọlọpọ, pẹlu agbara giga, iwuwo ara ẹni ina, agbara gigun nla, iyara ikole yara, iṣẹ jigijigi ti o dara julọ, didara iṣakoso, atunlo ati atunlo. Awọn Afara Idaduro Irin ti a ṣe nipasẹ ile-iṣẹ wa ti gba daradara nipasẹ awọn onibara.

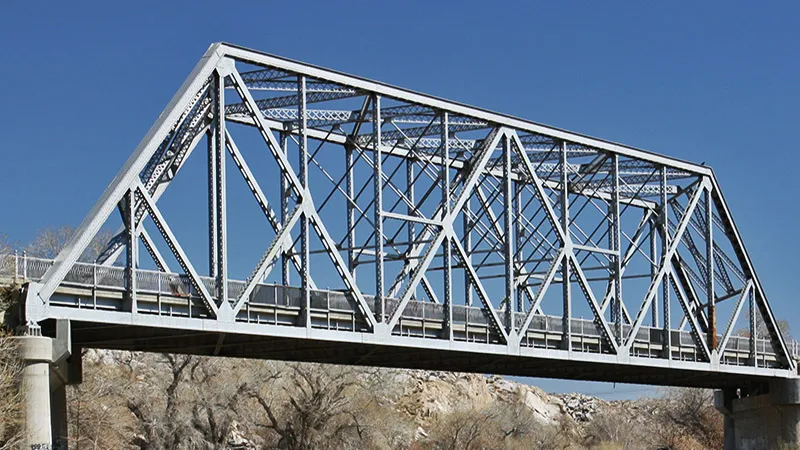

Steel Suspension Bridge

Ilana ọna ẹrọ

Gẹgẹbi ọna ita gbangba ti o ṣii ni gbogbo ọdun, Awọn afara Idaduro Irin ni igbagbogbo farahan si afẹfẹ ati ogbara ojo. Awọn ẹya pẹlu awọn giga kekere le tun jẹ ibajẹ nipasẹ odo tabi omi okun. Ni kukuru, itọju egboogi-ibajẹ jẹ pataki fun iru awọn ẹya.

Oju iṣẹlẹ	Awọn ohun elo ti a lo / ọna ẹrọ
Awọn ilu inu ilẹ	Epoxy zinc-ọlọrọ alakoko + epoxy micaceous iron oxide agbedemeji aso + akiriliki polyurethane topcoat
Awọn agbegbe ile-iṣẹ / lẹba awọn odo	Epoxy zinc-ọlọrọ alakoko + epoxy micaceous iron oxide agbedemeji aso + fluorocarbon topcoat
Awọn agbegbe etikun	Arc spraying zinc/aluminium + epoxy sealer + epoxy micaceous iron oxide agbedemeji aso + fluorocarbon topcoat
Marine / Deicing Iyọ Ayika	Arc spraying aluminiomu + epoxy sealer + epoxy micaceous iron oxide agbedemeji aso + fluorocarbon topcoat
Anti-ibajẹ fun Awọn ohun elo Kekere	Gbona-fibọ galvanizing
Solusan ti ko ni ibora	Irin oju ojo

Awọn ilana oriṣiriṣi tun ni ipa lori agbara ọna irin ati idiyele. Ti o ba gbero lati ra Awọn Afara Idaduro Irin wa, o le tọka si atẹle yii:

Irin idadoro Bridge Iru	Lilo Ohun elo Irin (kg/m²)	Lapapọ Iye Agbekale Irin (RMB/m²)
Irin Be Arinkiri Overpass	80 - 120	1,200 - 1,900
Irin Awo Apapo Girder Bridge	120-160	1.800 - 2.600
Irin Box Girder Bridge	180 - 240	2,500 - 3,600
Irin Truss Bridge	200 - 280	2,800 - 4,200
Irin Arch Bridge	220-320	3,200 - 5,000
Pataki-sókè / Landscape Irin idadoro Afara	180 - 280	3,500 - 5,500
Prefabricated Highway Irin idadoro Bridge	140-200	2,500 - 4,000
Oju ojo Irin idadoro Bridge	160-240	2,800 - 4,500
Aso Aṣa (C3)		80 - 150
Aso Aṣa (C4)		120-200
Gbona-fibọ Galvanizing		200 - 350
Gbona Sprayed Zinc + Fluorocarbon Topcoat (C5)		300 - 500

A nireti tọkàntọkàn Awọn afara Idaduro Irin wa le yanju awọn iṣoro rẹ ati pade awọn iwulo rẹ.

Kan si wa fun alaye diẹ sii.
